Unit of Measure

Specifications

Brands

 N/A GTek Automation

Direct Current (DC) Rated Voltage

 N/A 12 V

Maximum Pressure

 N/A 150 kPa21.75 psi1.5 bar1.5 kgf/cm²-19.7 inHg to 21.75 psi

Open Flow Air Output

 N/A 7.5 L/min

Weight per Each

 N/A 0.66 lb

Coil Insulation Class

 N/A A or its Equivalent (JTEL)

Gross Weight

 N/A 0.66 lb0.30 kg

Leadwire Length

 N/A 7 in180 mm

Attainable Vacuum

 N/A -66.6 kPa-500 mmHg-666 mbar-19.7 inHg

Free Air Displacement

 N/A 7.5 L/min0.26 ft³/min

Maximum Current

 N/A 1.4 A or Less

Rated Operating Time

 N/A Continuous

Life Expectancy

 N/A 5,000 h

Pulse Width Modulation Control Voltage

 N/A 2.5 to 5 V

Pulse Width Modulation Control Frequency

 N/A 15 to 25 kHz

Pulse Width Modulation Control Duty Cycle

 N/A 80 to 100 %

Straight Nipple Inlet and Outlet Outside Diameter (OD)

 N/A 6 mm

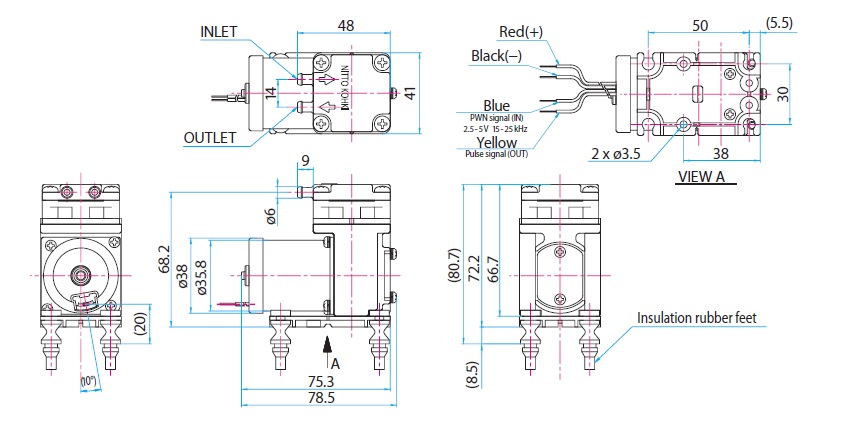

Dimensions

Length

 N/A 1-31/32 in50 mm

Width

 N/A 1-3/16 in30 mm

Box Size

Box Length

 N/A 12 in

Box Width

 N/A 9 in

Box Height

 N/A 9 in

Mounting Dimension of Rubber Foot

Plate Thickness (t)

 N/A 2 mm

Hole Diameter

 N/A 6 mm

Hole Diameter Tolerance (±)

 N/A 0.1 mm

Note for Mounting Dimension of Rubber Foot

 N/A Rubber feet come with the product as accessories.

Note

Note

 N/A Please read the page of “How to Use This Catalog” first for correct use of compressors and pumps.
