Manual lever actuated internal grip and seal connection tool for straight tubes/bores.

Typical Lead time is 1-2 weeks, but varies based on demand.

Unit of Measure

Specifications

Brands

 N/A FasTest GTek Automation

Sealing Inside Diameter (ID)/Tube Inside Diameter (ID)

 N/A 1.250 in31.8 mm

Pressure Rating

 N/A 10 mTorr (micron) to 750 psi (51.7 bar)

Note for Pressure Rating

 N/A

Pressure rating based on metal test piece not exceeding 30 Rockwell C hardness, As a general guideline, surface must be 5 micro inches or greater, Surfaces less than 5 micro inches not recommended

Material of Construction

 N/A Acetal (Polyoxymethylene (POM)) Aluminum Stainless Steel Urethane Collet Retainer

Tube Size Tolerance (±)

 N/A 0.010 in0.25 mm

Dimensions

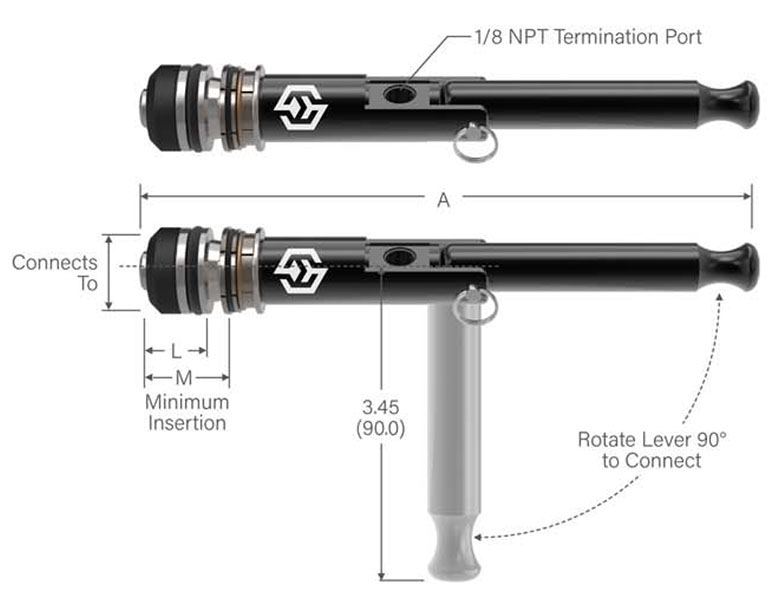

Dimension A

 N/A 7.71 in195.8 mm

Minimum Insertion (Dimension M)

 N/A 1.51 in38.4 mm

Dimension L

 N/A 1.44 in36.6 mm

Seal Material

Seal Material1 N/A Neoprene®

Note for Seal Material

 N/A

Additional seal material types available.

Actuation Method

Lever Actuated

 N/A

Simply flip the ergonomic handle in either direction for ease of use

Features

Features

 N/A

Fast

Reliable

Safe

Additional Information

Additional Information

 N/A
  1. Pressure assisted sealing and gripping with internal safety lock feature resists accidental disconnection under high pressure if handle is released
  2. Instant connection for copper, steel, and aluminum tubes commonly used in refrigeration and other industrial applications
  3. Stainless steel collets provide maximum grip with minimum distortion of the test piece
  4. Quick and easy seal replacement to minimize down time, maintenance, and tool inventory
  5. Self aligning connector requires no operator adjustment

Note

Note

 N/A

Additional JNL2 sizes available per customer request.

Body sold separately, select seal set for the base connector.
  • 1 Additional seal material types available, consult factory.
