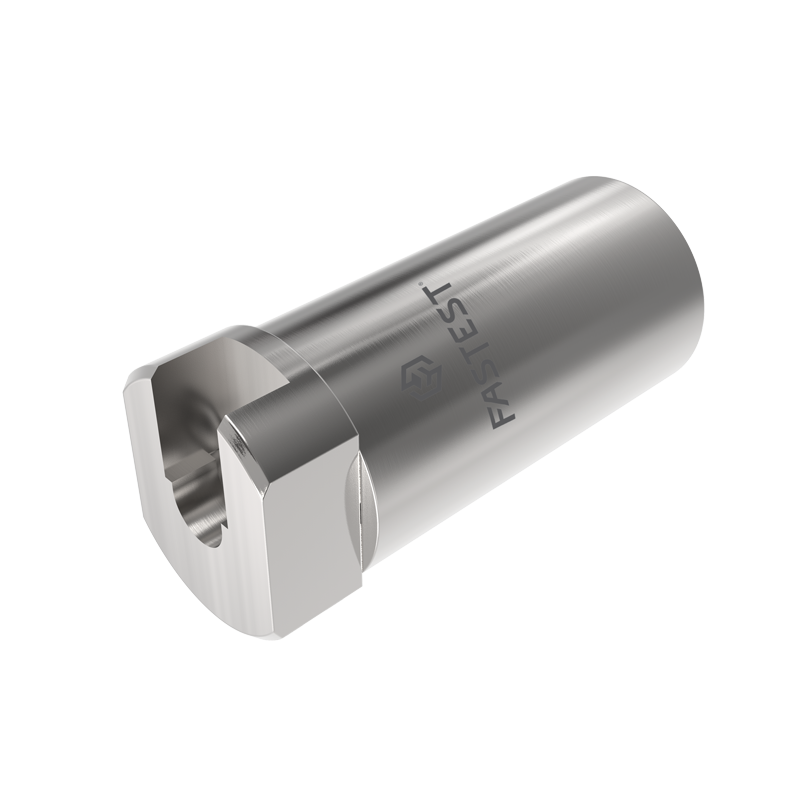

Pneumatic nested sealing connection tool for full thread luers in automated and semi-automated processes

Unit of Measure

Specifications

Brands

 N/A FasTest GTek Automation

Pressure Rating

 N/A Vacuum to 34.4 barVacuum to 500 psi

Operating Temperature

 N/A 0 to +200 ºF-17 to 93 ºC

Material

 N/A Anodized Aluminum

Note for Seal Material

 N/A

Additional seal material types available.

Pneumatic

 N/A Pilot pressure applied to seals with no metal contact and uniform seal movement seals inside luer

Dimensions

Termination Port Size (T)

 N/A 1/8 in

Termination Port Type (T)

 N/A Female National Pipe Thread (FNPT)

Seal Material

Seal Material

 N/A Food and Drug Administration (FDA) Approved Fluoroelastomer (FKM)

Additional Information

Additional Information

 N/A

Specifically designed leur nest to contain test part under pressure
Ideally designed for automated processes and high volume production testing
Seals against any full thread standard luers
Cleaned and lubricated for oxygen safe environments with FDA approved seals
