Pneumatic external sealing of medical devices in automated and semi-automated processes.

Medical Series Connectors

Typical Lead time is 1-2 weeks, but varies based on demand.

Unit of Measure

Specifications

Brands

 N/A FasTest GTek Automation

Connects To

 N/A Catheters Luers

Pressure Rating

 N/A Vacuum to 34 barVacuum to 500 psi

Pilot Pressure

 N/A 60 to 90 psi4.1 to 6.2 bar

Operating Temperature

 N/A 0 to +200 ºF-17 to 93 ºC

Operating Temperature for ICON™

 N/A 32 to 100 ºF0 to 38 ºC

Material

 N/A Anodized Aluminum

Note for Seal Material

 N/A

Additional seal material types available.

Pneumatic

 N/A Pilot pressure applied to seals with no metal contact and uniform seal movement seals inside luer

ICON™ Technology

 N/A Seal Life™ Sure Seal™

Dimensions

Termination Port Size (T)

 N/A 1/8 in

Termination Port Type (T)

 N/A Female National Pipe Thread (FNPT)

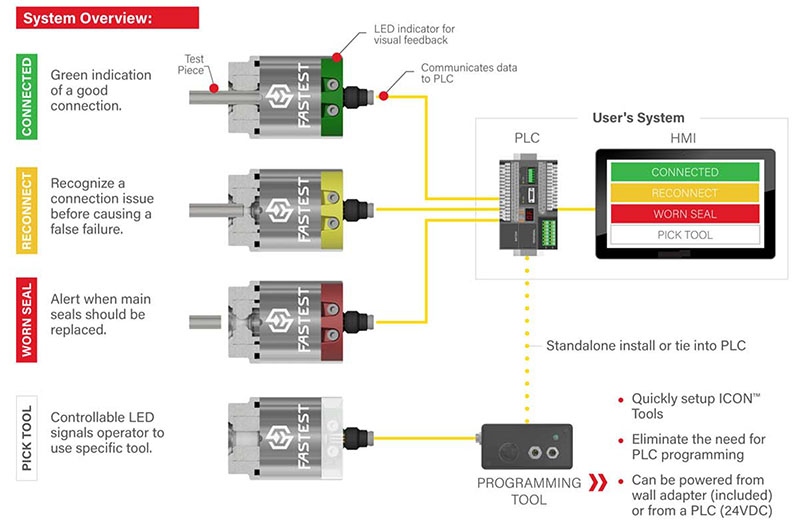

ICON™ Intelligent Connection Technology

ICON™ Intelligent Connection Technology

 N/A FasTest's ICON™ adds sensing capabilities to our mechanical Sealing Connection Tools. ICON™ Tools include instant LED visual feedback and data output to improve sealing connection accuracy, maximize production efficiency, and optimize maintenance.

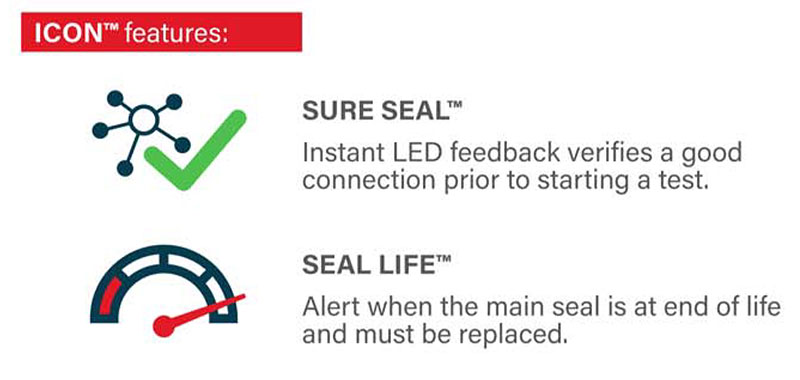

ICON™ Features

Sure Seal™

 N/A Instant LED feedback verifies a good connection prior to starting a test.

Seal Life™

 N/A Alert when the main seal is at end of life and must be replaced.

Programming Tool Features

Programming Tool Features

 N/A
  • Quickly setup ICON™ Tools
  • Eliminate the need for PLC programming
  • Can be powered from wall adapter (included) or from a PLC (24VDC)

Features

Features

 N/A

Fast

Reliable

Safe

Additional Information

Additional Information

 N/A

Additional seal material types available.

Body sold separately, select seal set for the base connector.

Note

Note

 N/A

Additional seal material types available.

Body sold separately, select seal set for the base connector.
