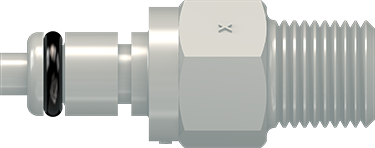

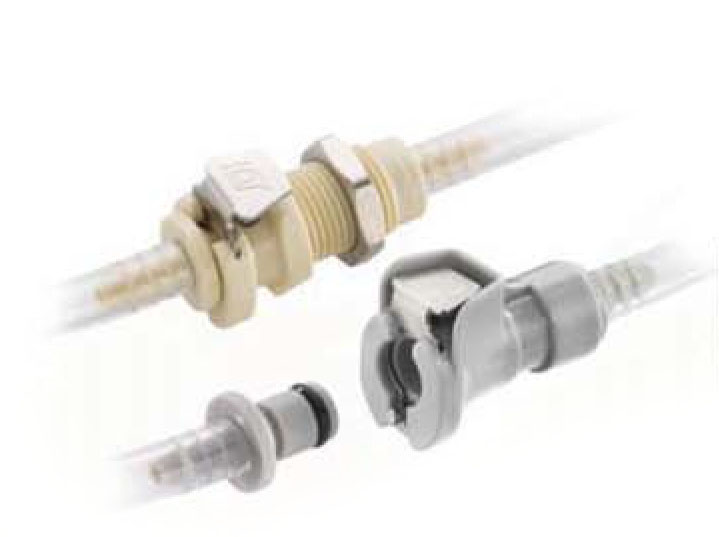

20PP Series couplings offer 1/8" flow, are produced from medical grade, gamma sterilizable polypropylene, and offer greater chemical resistance. 20PP couplings interconnect with all other 20AC and 20CB Series couplings as well as other similar industry thumb-latch couplings. These couplings are available in Legacy Almond and Modern Cool Grey colors.
Typical Lead time is 1-2 weeks, but varies based on demand.
Typical Lead time is 1-2 weeks, but varies based on demand.
Unit of Measure
Specifications
|
Dimensions
|
Performance Ratings
|
Materials and Construction
|
Panel Mount Dimensions
|
Box Size
|
Additional Information
Specifications
Brands |
N/A GTek Automation |
Type |
N/A Valved |
Thread Size |
N/A 1/8 in |
Thread Type |
N/A National Pipe Thread (NPT) |
Available Colors |
N/A Legacy Almond Modern Cool Gray |
Weight per Each |
N/A 1.00 lb |

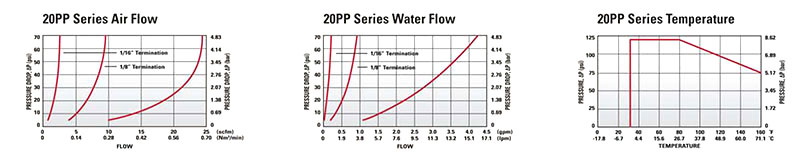

Performance Ratings
Operating Pressure |
N/A Vacuum to 120 psiVacuum to 8.3 bar |
Temperature Range |
N/A 0 to 71 ºC32 to 160 ºF |

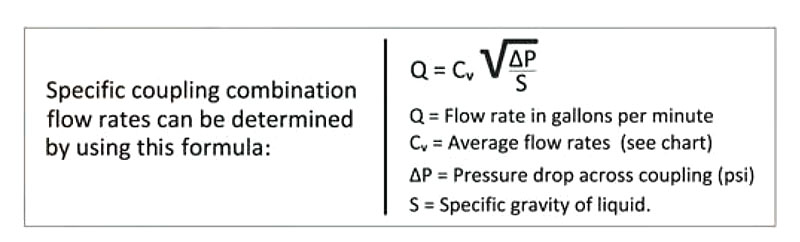

Flow Capacity |
N/A 1/8 in |
Maximum Gamma Sterilization Irradiation |
N/A 50 kGy |
Materials and Construction
Bodies and Terminations Material |
N/A Medical Grade Polypropylene |
Internal Valve Material |
N/A Medical Grade Polypropylene |
Internal Valve Springs Material |
N/A 316 Stainless Steel |
O-Rings Material |
N/A Peroxide-Cured Ethylene Propylene Diene Monomer (EPDM) (Others Available) |
Thumb-Latch Material |
N/A Stainless Steel |
External Springs and Pins Material |
N/A Stainless Steel |
