40PP Series couplings offer 1/4" flow and are produced from medical grade gamma sterilizable polypropylene. The 40PP Series polypropylene couplings offer greater chemical resistance and they are available in both valved and non-valved configurations. These couplings are available in Legacy Almond and Modern Cool Grey colors. All 40PP couplings interconnect with all other 40AC and 40CB couplings as well as other similar industry thumb-latch type couplings.
Typical Lead time is 1-2 weeks, but varies based on demand.
Typical Lead time is 1-2 weeks, but varies based on demand.
Unit of Measure
Specifications
|
Dimensions
|
Performance Ratings
|
Materials and Construction
|

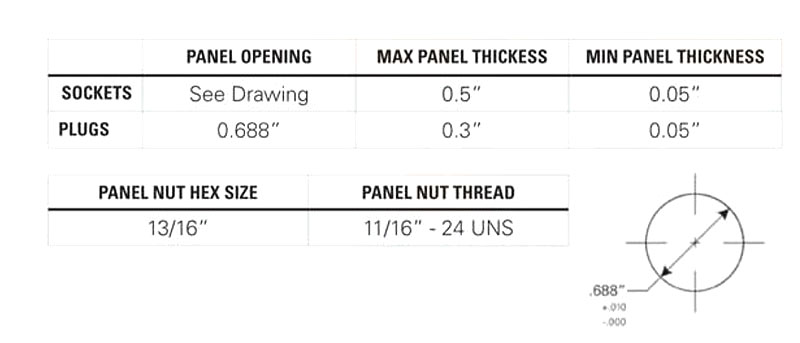

Panel Mount Dimensions
|
Box Size
Specifications
Brands |
N/A GTek Automation |
Type |
N/A Valved |
Inside Diameter (ID) Tube Size |
N/A 1/4 in6.4 mm |
Maximum Gamma Sterilization Irradiation |
N/A 50 kGy |
Weight per Each |
N/A 1.00 lb |
Additional Information |
N/A Each coupling combination was tested at 70 ºF (21 ºC). |
Performance Ratings
Operating Pressure |
N/A Vacuum to 120 psiVacuum to 8.3 bar |
Operating Temperature |
N/A 0 to 71 ºC32 to 160 ºF |

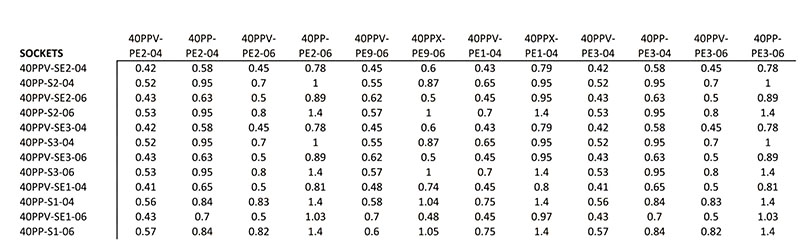

Flow Capacity |
N/A 1/4 in |
Materials and Construction
Bodies and Terminations Material |
N/A Medical Grade Polypropylene |
Internal Valve Material |
N/A Medical Grade Polypropylene |
Internal Valve Springs Material |
N/A 316 Stainless Steel |
O-Rings Material |
N/A Peroxide-Cured Ethylene Propylene Diene Monomer (EPDM) (Others Available) |
Thumb-Latch Material |
N/A Stainless Steel |
External Springs and Pins Material |
N/A Stainless Steel |
