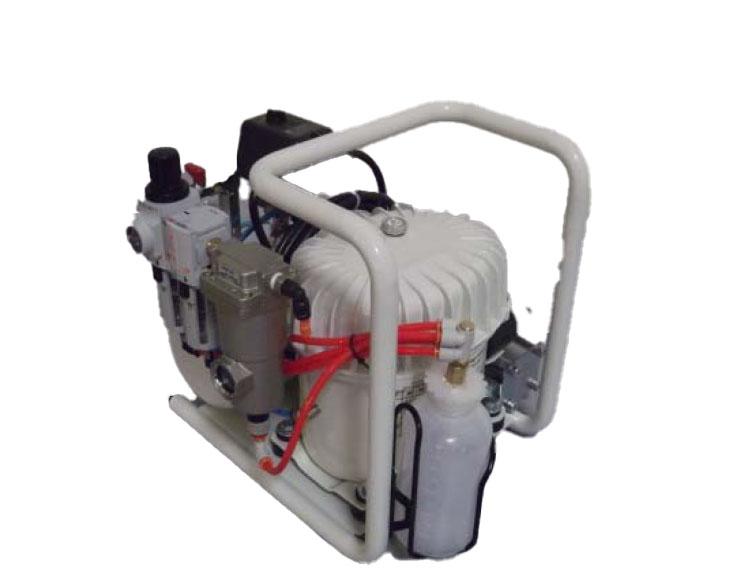

- Designed to automatically remove oil, water and particulate matter from the compressors discharge line.
- Includes 5 micron Filter Regulator, 5 micron Air Filter or 0.01 Micron Coalescing Filter, and Ambient Water Separator for water removal. (5 Micron air filter use on Oil Free Compressors, 0.01 Micron Coalescing Filter used on Oil Lubricated Compressors)
- All Filters have automatic drains that are plumbed to a white fluid collection bottle.
- The white fluid collection bottle to be emptied as needed.
Unit of Measure
Filter Regulator
Fluid (Filter Regulator) |
N/A Air |
Filter Element Size (Filter Regulator) |
N/A 5 µ |
Maximum Pressure (Filter Regulator) |
N/A 100 psi |
Minimum Pressure (Filter Regulator) |
N/A 22 psi |
Proof Pressure (Filter Regulator) |
N/A 200 psi |
Non Freezing Ambient Temperature (Filter Regulator) |
N/A 41 to 140 ºF |
Element Life Under Normal Condition (Filter Regulator) |
N/A 1 year |
Element Part Number (Filter Regulator) |
N/A CKD-W1000-ELEMENT-ASSY |
Coalescing Filter
Fluid (Coalescing Filter) |
N/A Air |
Filter Element Size (Coalescing Filter) |
N/A 0.01 µ |
Maximum Pressure (Coalescing Filter) |
N/A 100 psi |
Minimum Pressure (Coalescing Filter) |
N/A 22 psi |
Proof Pressure (Coalescing Filter) |
N/A 200 psi |
Non Freezing Ambient Temperature (Coalescing Filter) |
N/A 41 to 140 ºF |
Element Life Under Normal Condition (Coalescing Filter) |
N/A 1 year |
Element Part Number (Coalescing Filter ) |
N/A CKD-M1000-KIT-F1 |
Ambient Water Separator
Fluid (Ambient Water Separator) |
N/A Air |
Filter Element (Ambient Water Separator) |
N/A Resin |
Maximum Pressure (Ambient Water Separator) |
N/A 145 psi |
Minimum Pressure (Ambient Water Separator) |
N/A 20 psi |
Proof Pressure (Ambient Water Separator) |
N/A 200 psi |
Non Freezing Ambient Temperature (Ambient Water Separator) |
N/A 23 to 140 ºF |
Element Life Under Normal Condition (Ambient Water Separator) |
N/A 1 year |
Element Part Number (Ambient Water Separator) |
N/A GTA-AMG-EL150 |
