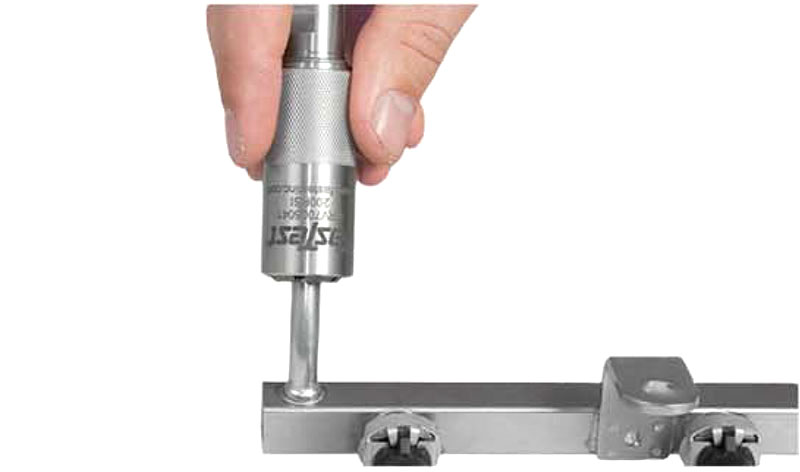

70 Series for connecting to Fuel Rail SAE J2044 Fittings

Typical Lead time is 1-2 weeks, but varies based on demand.

Unit of Measure

Specifications

Brands

 N/A FasTest GTek Automation

Connects To

 N/A Fuel Rail

Thread Size

 N/A 3/8 in

Thread Type

 N/A Society of Automotive Engineers (SAE) J2044

Connection Type

 N/A 70 Fuel Rail (FR) Valved

Pressure Rating

 N/A 200 psi

Operating Temperature

 N/A -40 to +121 ºC-40 to +250 ºF

Material of Construction

 N/A Anodized Aluminum Stainless Steel

Dimensions

Dimension A

 N/A 3.30 in83.8 mm

Dimension B

 N/A 1.19 in1.19 mm

Termination Port Size (T)

 N/A 3/8 in

Termination Port Type (T)

 N/A Inline Female National Pipe Thread (FNPT)

Seal Material

Seal Material

 N/A Buna-N/Nitrile

Note for Seal Material

 N/A

Additional seal material types available.

Actuation Method

Manual Sleeve

 N/A Easy, ergonomic sleeve action eliminates repetitive twisting and turning - push to connect, pull to release

Features

Features

 N/A

Fast

Reliable

Safe

Additional Information

Additional Information

 N/A
  1. SurConnect™ - Green to go visible indicator to ensure complete connection and internally valved to prevent gas flow once disconnected
  2. Instant external formed tube connection with floating piston to ensure proper OD / face / ID sealing position
  3. Collet design locks securely over formed tube feature
  4. Connect and seal to standard fuel rail bead /SAE J2044

Note

Note

 N/A
  • Also available with an internal shut-off valve
  • Connectors are designed and manufactured per application. Because of the specific engineering and production involved, two copies of prints disclosing all dimensional tolerances and features, two sample parts, and application information on pressure and media being used must accompany all first-time orders.
  • Specific connector part number will be established by FasTest Engineering.
  • FasTest reserves the right to decline a request based on feasibility of design.

Body sold separately, select seal set for the base connector.
