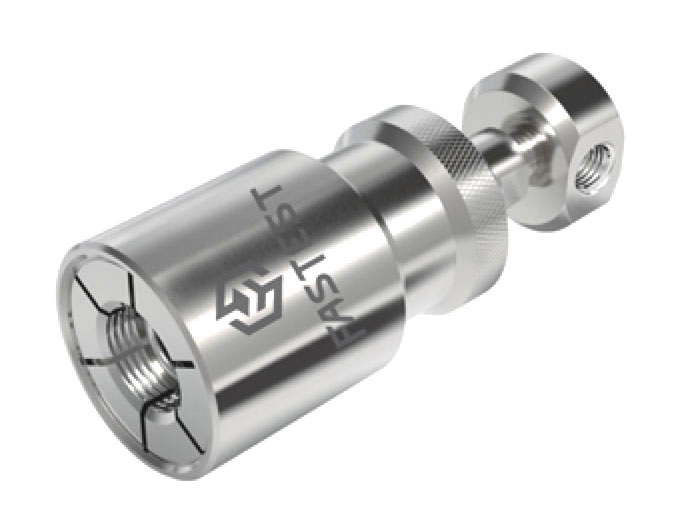

HPB Series for Connecting to Double Ferrule Compression Style Fittings (Swagelok, Parker A-Lok & CPI, Let-Lok)

Typical Lead time is 1-2 weeks, but varies based on demand.

Unit of Measure

Specifications

Brands

 N/A FasTest GTek Automation

Thread Size

 N/A 1/4 (7/16-20)

Pressure Rating

 N/A 5000 psi345 bar

Connection Type

 N/A Sleeve Actuated

Termination Port Size (T)

 N/A 1/8 in

Termination Port Type (T)

 N/A Female National Pipe Thread (FNPT)

Connects To

 N/A Compression Fitting

Operating Temperature

 N/A -40 to +250 ºF-40 to +121 ºC

Material of Construction

 N/A Stainless Steel

Manual Sleeve

 N/A Easy, ergonomic sleeve action eliminates repetitive twisting and turning - push to connect, pull to release

Port Specifications

 N/A BSPP (G) per ISO 228 NPT per SAE J476 SAE 37º Flare per SAE J514 SAE ORFS per SAE J1453

Seal Material

Standard Seal Material

 N/A Buna-N

Optional Seal Material

 N/A Ethylene Propylene Diene Monomer (EPDM) Fluoroelastomer (FKM) Neoprene®

Note for Seal Material

 N/A

Additional seal material types available.

Features

Features

 N/A

Fast

Reliable

Safe

Additional Information

Additional Information

 N/A
  1. Internal ball latch locking mechanism prevents accidental disconnection under pressure
  2. Instant threaded sealing connection up to 6000 psi without tape sealant or wrenches - significantly reduces process time
  3. Collet design locks securely into external threads or behind tube features
  4. Customizable to external threaded ports or any tube feature
  5. Self aligning connector requires no operator adjustment

Note

Note

 N/A

Body sold separately, select seal set for the base connector.
