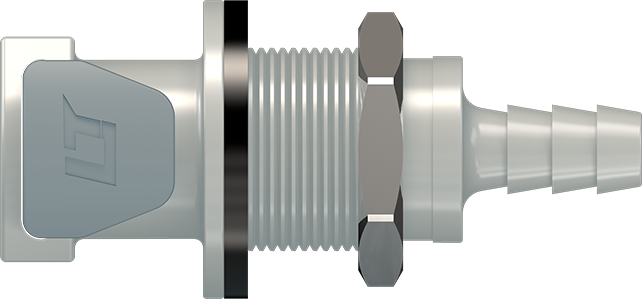

50PP Series couplings offer 1/4" flow and are produced from medical grade gamma sterilizable polypropylene. The 50PP Series polypropylene couplings offer greater chemical resistance and they are available in both valved and non-valued configurations. All 50PP couplings interconnect with all other 50 Series couplings as well as other similar industry thumb-latch type couplings.
Gasket Seal Included.
Typical Lead time is 1-2 weeks, but varies based on demand.
Gasket Seal Included.
Typical Lead time is 1-2 weeks, but varies based on demand.
Unit of Measure
Specifications
|
Dimensions
|
Performance Ratings
|
Materials and Construction
|

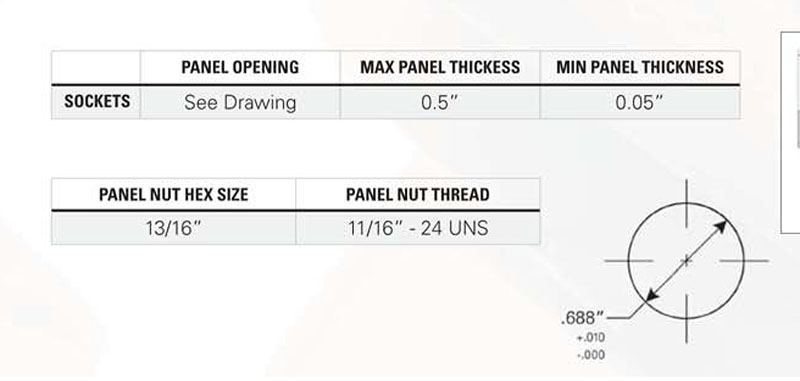

Panel Mount Dimensions
|
Box Size
Specifications
Brands |
N/A GTek Automation |
Type |
N/A Valved |
Inside Diameter (ID) Tube Size |
N/A 1/4 in6.4 mm |
Weight per Each |
N/A 1.00 lb |
Additional Information |
N/A Each coupling combination was tested at 70 ºF (21 ºC). |
Performance Ratings
Operating Pressure |
N/A Vacuum to 100 psiVacuum to 7.2 bar |
Operating Temperature |
N/A 0 to 71 ºC32 to 160 ºF |

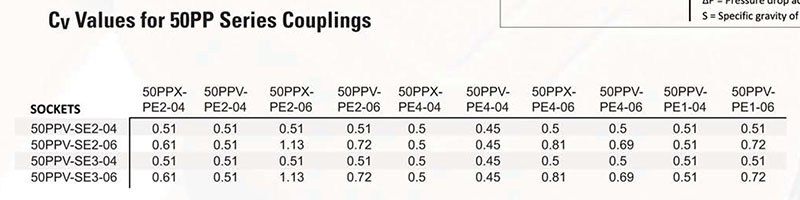

Flow Capacity |
N/A 1/4 in |
Materials and Construction
Bodies and Terminations Material |
N/A Medical Grade Polypropylene |
Internal Valve Material |
N/A Medical Grade Polypropylene |
Internal Valve Springs Material |
N/A 316 Stainless Steel |
O-Rings Material |
N/A Peroxide-Cured Ethylene Propylene Diene Monomer (EPDM) (Others Available) |
Thumb-Latch Material |
N/A Medical Grade Polypropylene |
External Springs and Pins Material |
N/A Stainless Steel |
